CRNMC
99.9-99.9995%
Hot Rolled, Cold Rolled
Ningbo Chuangrun/Baoji Base
2*10*10m,Customer customization
Wooden box/pallet packaging
50 kg
Semiconductor
| Quantity: | |
|---|---|

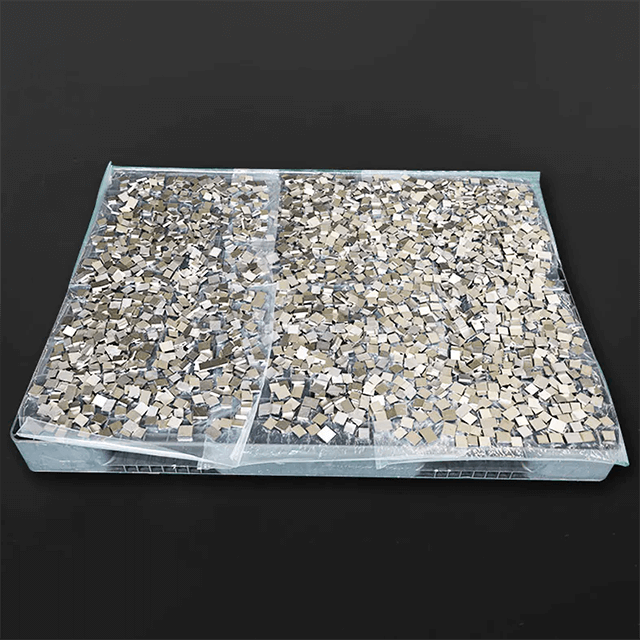

Titanium Block overview:
Purity: 4N-4N5 is used for evaporation plating of thin metal films in different industries such as semiconductor chips, optoelectronic devices, sensors and OLEDs.
Low purity: 3N-4N is used to melt refractory metals and weld rails, and is also used as a deoxidizer in the steelmaking process.
It can be made into various titanium alloys, which are widely used in the manufacturing industries of airplanes, automobiles, trains, ships, cosmic rockets, space shuttles, artificial satellites and so on.
Project | 3N | 3N5 | 4N | 4N5 | 5N | 5N5 | Unit | Detection Method |
Total Purity | ≥99.9 | ≥99.95 | ≥99.99 | ≥99.995 | ≥99.999 | ≥99.9995 | % [wt] | |
Ag | - | - | 1 | 0.5 | 0.01 | 0.01 | ppm [wt] | GDMS |
Al | - | 50 | 10 | 3 | 2 | 2 | ppm [wt] | GDMS |
As | - | - | 10 | 1 | 0.5 | 0.5 | ppm [wt] | GDMS |
Au | - | - | 1 | 0.5 | 0.25 | 0.25 | ppm [wt] | GDMS |
B | - | 1 | - | 0.1 | 0.05 | 0.05 | ppm [wt] | GDMS |
Be | - | - | - | 0.5 | 0.5 | 0.5 | ppm [wt] | GDMS |
Bi | - | - | - | 0.1 | 0.05 | 0.05 | ppm [wt] | GDMS |
Ca | - | - | 1 | 1 | 0.5 | 0.5 | ppm [wt] | GDMS |
Cd | - | - | - | 1 | 0.2 | 0.2 | ppm [wt] | GDMS |
Cl | 600 | 10 | 5 | 1 | 0.1 | 0.1 | ppm [wt] | GDMS |
Co | - | - | 5 | 1 | 0.05 | 0.05 | ppm [wt] | GDMS |
Cr | - | 20 | 5 | 1 | 0.8 | 0.8 | ppm [wt] | GDMS |
Cu | - | 50 | 5 | 2 | 1 | 1 | ppm [wt] | GDMS |
F | - | - | - | 15 | 0.5 | 0.5 | ppm [wt] | GDMS |
Fe | 700 | 200 | 10 | 7 | 5 | 3 | ppm [wt] | GDMS |
Hg | - | - | - | 0.5 | 0.5 | 0.1 | ppm [wt] | GDMS |
K | - | 0.1 | 0.1 | 0.05 | 0.05 | 0.01 | ppm [wt] | GDMS |
Li | - | 0.1 | 0.1 | 0.05 | 0.05 | 0.005 | ppm [wt] | GDMS |
Mg | - | 1 | 2 | 1 | 0.1 | 0.1 | ppm [wt] | GDMS |
Mn | - | 10 | 5 | 1 | 1 | 0.5 | ppm [wt] | GDMS |
Mo | - | - | 4 | 1 | 0.05 | 0.05 | ppm [wt] | GDMS |
Na | - | - | 0.2 | 0.03 | 0.03 | 0.03 | ppm [wt] | GDMS |
Ni | 250 | 25 | 5 | 1 | 0.5 | 0.5 | ppm [wt] | GDMS |
P | - | - | - | 1 | 0.25 | 0.01 | ppm [wt] | GDMS |
Pb | - | - | - | 1 | 0.1 | 0.01 | ppm [wt] | GDMS |
Pd | - | - | - | 0.1 | 0.1 | 0.01 | ppm [wt] | GDMS |
S | - | - | 10 | 10 | 5 | 3 | ppm [wt] | GDMS |
Sb | - | - | 7 | 0.5 | 0.5 | 0.05 | ppm [wt] | GDMS |
Si | 200 | 50 | 5 | 2 | 1 | 1 | ppm [wt] | GDMS |
Sn | - | - | 5 | 1 | 0.5 | 0.01 | ppm [wt] | GDMS |
Te | - | - | - | 0.5 | 0.5 | 0.05 | ppm [wt] | GDMS |
Th | - | 0.001 | 0.001 | 0.0005 | 0.0001 | 0.0001 | ppm [wt] | GDMS |
U | - | 0.001 | 0.001 | 0.0005 | 0.0001 | 0.0001 | ppm [wt] | GDMS |
V | - | - | - | 1 | 1 | 1 | ppm [wt] | GDMS |
W | - | - | - | 1 | 0.1 | 0.1 | ppm [wt] | GDMS |
Zn | - | - | 5 | 1 | 0.1 | 0.1 | ppm [wt] | GDMS |
Zr | - | - | 5 | 3 | 1 | 1 | ppm [wt] | GDMS |
Ba | - | - | - | 0.1 | 0.1 | 0.1 | ppm [wt] | GDMS |
Br | - | - | - | 0.5 | 0.5 | 0.5 | ppm [wt] | GDMS |
Ce | - | - | - | 0.1 | 0.1 | 0.1 | ppm [wt] | GDMS |
Cs | - | - | - | 0.1 | 0.1 | 0.1 | ppm [wt] | GDMS |
Ga | - | - | - | 0.5 | 0.5 | 0.5 | ppm [wt] | GDMS |
Ge | - | - | - | 0.5 | 0.5 | 0.5 | ppm [wt] | GDMS |
Hf | - | - | - | 1 | 1 | 1 | ppm [wt] | GDMS |
I | - | - | - | 0.1 | 0.1 | 0.1 | ppm [wt] | GDMS |
In | - | - | - | 0.1 | 0.1 | 0.1 | ppm [wt] | GDMS |
La | - | - | - | 0.1 | 0.1 | 0.1 | ppm [wt] | GDMS |
Pt | - | - | - | 0.1 | 0.1 | 0.1 | ppm [wt] | GDMS |
Re | - | - | - | 0.1 | 0.1 | 0.1 | ppm [wt] | GDMS |
Rh | - | - | - | 0.2 | 0.2 | 0.2 | ppm [wt] | GDMS |
Ru | - | - | - | 0.1 | 0.1 | 0.1 | ppm [wt] | GDMS |
Sc | - | - | - | 0.1 | 0.1 | 0.1 | ppm [wt] | GDMS |
Se | - | - | - | 0.5 | 0.5 | 0.5 | ppm [wt] | GDMS |
Pr | - | - | - | 0.1 | 0.1 | 0.1 | ppm [wt] | GDMS |
Nd | - | - | - | 0.1 | 0.1 | 0.1 | ppm [wt] | GDMS |
Sm | - | - | - | 0.1 | 0.1 | 0.1 | ppm [wt] | GDMS |
Eu | - | - | - | 0.1 | 0.1 | 0.1 | ppm [wt] | GDMS |
Gd | - | - | - | 0.1 | 0.1 | 0.1 | ppm [wt] | GDMS |
Tb | - | - | - | 0.1 | 0.1 | 0.1 | ppm [wt] | GDMS |
Dy | - | - | - | 0.1 | 0.1 | 0.1 | ppm [wt] | GDMS |
Ho | - | - | - | 0.1 | 0.1 | 0.1 | ppm [wt] | GDMS |
Er | - | - | - | 0.1 | 0.1 | 0.1 | ppm [wt] | GDMS |
Tm | - | - | - | 0.1 | 0.1 | 0.1 | ppm [wt] | GDMS |
Yb | - | - | - | 0.1 | 0.1 | 0.1 | ppm [wt] | GDMS |
Lu | - | - | - | 0.1 | 0.1 | 0.1 | ppm [wt] | GDMS |
Os | - | - | - | 0.1 | 0.1 | 0.1 | ppm [wt] | GDMS |
Ir | - | - | - | 0.1 | 0.1 | 0.1 | ppm [wt] | GDMS |
Pt | - | - | - | 0.1 | 0.1 | 0.1 | ppm [wt] | GDMS |
Tl | - | - | - | 0.1 | 0.1 | 0.1 | ppm [wt] | GDMS |
C | 200 | 150 | 50 | 30 | 30 | 30 | ppm [wt] | LECO |
H | 50 | 10 | 5 | 10 | 6 | 6 | ppm [wt] | LECO |
N | 200 | 100 | 50 | 30 | 30 | 30 | ppm [wt] | LECO |
O | 800 | 700 | 450 | 300 | 200 | 100 | ppm [wt] | LECO |
