Titanium is a remarkable metal valued for its strength, light weight, and exceptional resistance to corrosion. It is widely used in aerospace, medical implants, marine applications, and high-performance sports equipment. But how does titanium transform from raw mineral in the Earth into a gleaming, high-performance material? The journey from ore to finished titanium product is complex and involves a series of carefully controlled steps, blending chemistry, engineering, and precision.

This article will walk you through the entire process of titanium extraction and production—from mining the raw ore to producing usable metal. Understanding these stages helps explain why titanium is more expensive than other metals and why it is reserved for applications where performance truly matters.

Mining the Raw Materials: Where Titanium Begins

Titanium does not occur in its metallic form in nature. Instead, it is primarily found in the form of mineral ores—rutile (TiO₂) and ilmenite (FeTiO₃). These ores are commonly mined in countries such as Australia, South Africa, Canada, India, and China. Ilmenite is more abundant but requires more processing to extract titanium.

The mining process for titanium ore involves traditional open-pit or dredging techniques. Heavy equipment removes layers of earth, extracting mineral sands that contain ilmenite or rutile. The collected sand is then washed and sorted to concentrate the ore.

After mining, the ore goes through a beneficiation process that involves crushing, screening, and magnetic separation. These steps concentrate the titanium content and remove impurities, preparing the material for chemical processing.

Converting Ore to Titanium Dioxide

The next major step is turning raw titanium ore into titanium dioxide (TiO₂), which serves as the intermediate product for producing titanium metal. This is typically done through two processes: the sulfate process or the chloride process.

• The Sulfate Process involves digesting ilmenite with sulfuric acid to produce titanium sulfate. This is then hydrolyzed to form hydrated titanium dioxide, which is calcined (heated) to yield pure TiO₂.

• The Chloride Process, more commonly used in producing titanium metal, involves treating rutile with chlorine gas at high temperatures in the presence of carbon. This forms titanium tetrachloride (TiCl₄), a volatile and reactive compound known as "tickle." Impurities like iron and other metals do not react under these conditions and are separated.

TiCl₄ is a key intermediate that is then purified through distillation. Because it is a gas at elevated temperatures, it can be easily separated from non-volatile impurities, resulting in high-purity titanium tetrachloride.

The Kroll Process: Producing Titanium Sponge

Once high-purity TiCl₄ is available, it is converted into metallic titanium through the Kroll Process. This is the most widely used method today for producing titanium sponge, a porous form of the metal that can later be melted and shaped.

The Kroll Process involves reacting titanium tetrachloride with magnesium in an inert atmosphere at temperatures around 800–1000°C. The chemical reaction is:

TiCl₄ + 2Mg → Ti + 2MgCl₂

Magnesium reduces the TiCl₄, forming titanium metal and magnesium chloride as a by-product. This reaction is highly sensitive and must be carefully controlled to avoid contamination. The resulting titanium appears as a gray, sponge-like mass, hence the name "titanium sponge."

After the reaction, the titanium sponge is separated from magnesium chloride and any unreacted magnesium. These by-products are typically removed by vacuum distillation or leaching. The purified titanium sponge is then crushed and stored for further processing.

Melting and Alloying: Turning Sponge into Usable Metal

Titanium sponge is not directly usable in most applications. It must be melted and cast into ingots or slabs, which can then be rolled, forged, or machined into final products.

The melting process often uses a vacuum arc remelting (VAR) or electron beam melting (EBM) furnace. These methods ensure that the metal stays pure and free from oxygen or nitrogen contamination, which can significantly reduce its strength and durability.

At this stage, titanium can also be alloyed with other elements—such as aluminum, vanadium, molybdenum, or tin—to improve specific properties like strength, ductility, or corrosion resistance. For example, Ti-6Al-4V is the most common titanium alloy and is used in aerospace, medical, and industrial applications.

Once melted, the titanium is cast into large ingots. These ingots undergo multiple rounds of rolling, forging, or extrusion to form sheets, bars, tubes, or custom shapes, depending on the final application.

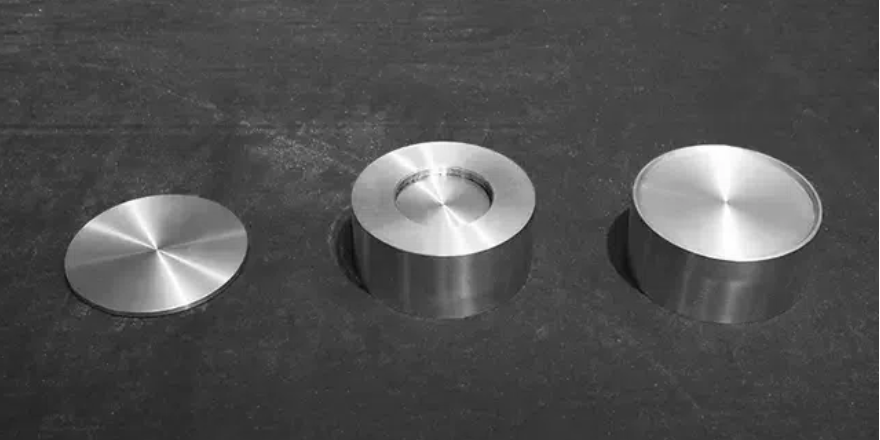

Forming and Machining: The Final Product Takes Shape

Titanium is difficult to machine due to its hardness and low thermal conductivity, which causes heat to build up at the cutting edge. Special tools and techniques are used to avoid damaging the material during cutting or shaping.

Titanium can be formed through several methods:

• Forging and Rolling for making structural components

• Extrusion for tubes and rods

• Casting for complex shapes, especially in aerospace

• Additive Manufacturing (3D Printing), an emerging method for producing lightweight and complex parts with minimal waste

After forming, the product may undergo surface treatments such as polishing, sandblasting, or anodizing to improve its appearance and corrosion resistance.

Applications of the Final Product

Once processed, titanium products are used across a wide range of industries:

• Aerospace: Jet engines, airframes, landing gear

• Medical: Bone implants, dental screws, surgical tools

• Marine: Ship parts, heat exchangers, underwater valves

• Industrial: Chemical reactors, pipelines, desalination systems

• Consumer Goods: Eyeglass frames, watches, sporting equipment

Thanks to its strength, low weight, and resistance to corrosion, titanium continues to find new roles in advanced engineering and design.

Environmental and Economic Considerations

Producing titanium is energy-intensive and costly compared to other metals. The Kroll Process, while effective, involves multiple high-temperature stages and large quantities of magnesium. However, researchers are developing new technologies like the FFC Cambridge process, which may reduce costs and improve sustainability in the future.

Moreover, titanium is highly recyclable. Scrap from machining and fabrication can be melted and reused, lowering the environmental footprint.

Conclusion

Titanium's transformation from ore to finished product is a complex process involving mining, chemical conversion, and precise metallurgical steps like the Kroll Process and alloying. Each stage demands high levels of control and expertise, contributing to titanium's superior strength, corrosion resistance, and performance in demanding applications such as aerospace, medical, and marine industries.
