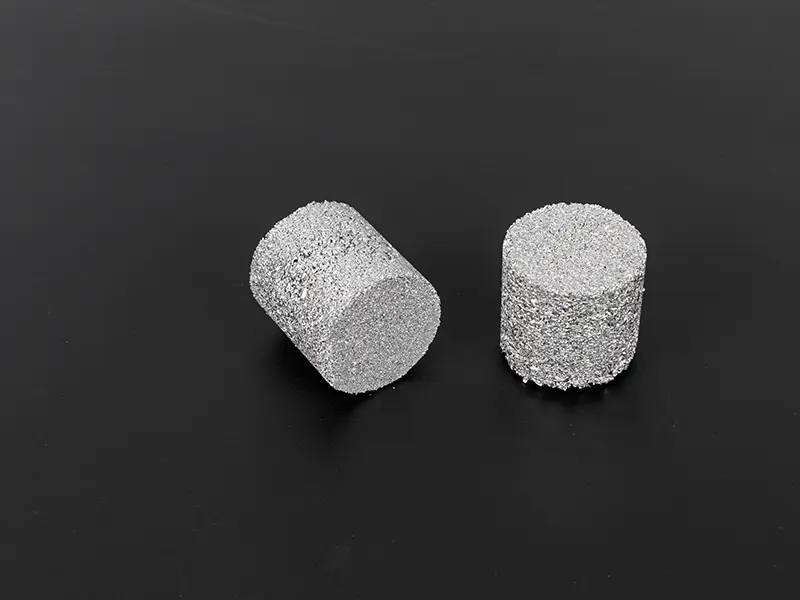

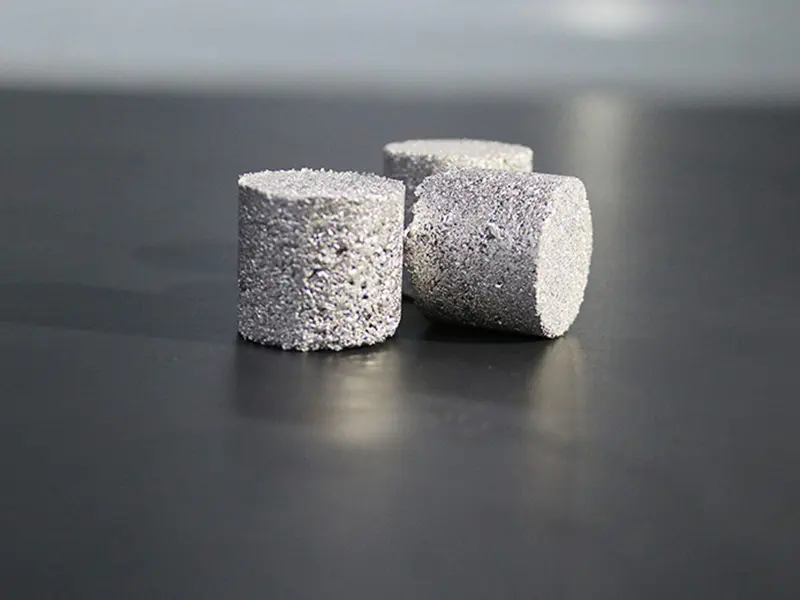

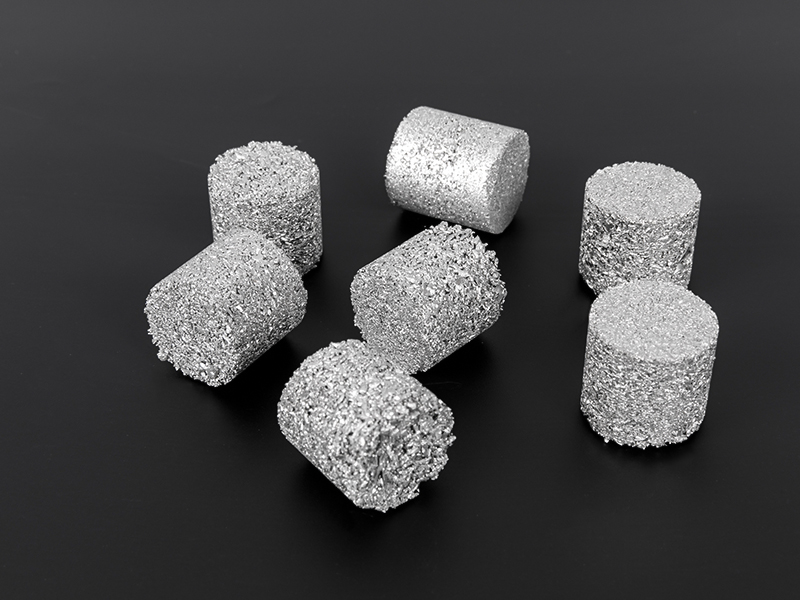

product name | Electrolytic compact titanium crystal |
Production Process | Vacuum molten salt electrolysis |
Production base | Ningbo Chuangrun Base/Harbin Borui Base |
Product specifications | Irregular particle size 2-10mm, 0.5-2mm, <0.5mm |
Product packaging | Vacuum sealed |
Minimum order quantity | 50kg |
Remark |
| project | Ultra-low oxygen titanium crystal | Low-oxygen titanium crystal | unit | Detection method |
| Total purity | ≥99.99 | ≥99.98 | % [wt] | - |
| Fe | ≤5 | ≤10 | ppm [wt] | GDMS |
| Al | ≤5 | ≤10 | ppm [wt] | GDMS |
| Cu | ≤5 | ≤10 | ppm [wt] | GDMS |
| V | ≤5 | ≤10 | ppm [wt] | GDMS |
| Mn | ≤20 | ≤100 | ppm [wt] | GDMS |
| Si | ≤1 | ≤5 | ppm [wt] | GDMS |
| Sn | ≤0.01 | ≤1 | ppm [wt] | GDMS |
| Pb | ≤0.01 | ≤1 | ppm [wt] | GDMS |
| As | ≤0.01 | ≤1 | ppm [wt] | GDMS |
| other | ≤1 | ≤1 | ppm [wt] | GDMS |
| C | ≤20 | ≤50 | ppm [wt] | LECO |
| H | ≤10 | ≤50 | ppm [wt] | LECO |
| O | ≤150 | ≤250 | ppm [wt] | LECO |
| N | ≤10 | ≤50 | ppm [wt] | LECO |
| project | Ultra-low oxygen titanium crystal | Low-oxygen titanium crystal | unit | Detection method |
| Total purity | ≥99.99 | ≥99.98 | % [wt] | - |
| Fe | ≤5 | ≤10 | ppm [wt] | GDMS |
| Al | ≤5 | ≤10 | ppm [wt] | GDMS |
| Cu | ≤5 | ≤10 | ppm [wt] | GDMS |
| V | ≤5 | ≤10 | ppm [wt] | GDMS |
| Mn | ≤20 | ≤100 | ppm [wt] | GDMS |
| Si | ≤1 | ≤5 | ppm [wt] | GDMS |
| Sn | ≤0.01 | ≤1 | ppm [wt] | GDMS |
| Pb | ≤0.01 | ≤1 | ppm [wt] | GDMS |
| As | ≤0.01 | ≤1 | ppm [wt] | GDMS |
| other | ≤1 | ≤1 | ppm [wt] | GDMS |
| C | ≤20 | ≤50 | ppm [wt] | LECO |
| H | ≤10 | ≤50 | ppm [wt] | LECO |
| O | ≤150 | ≤250 | ppm [wt] | LECO |
| N | ≤10 | ≤50 | ppm [wt] | LECO |
