CRNMC
99.9-99.9995%
Hot Rolled, Cold Rolled
Ningbo Chuangrun/ Baoji Base
Thickness σ0.05-100mm, Maximum Width 3000mm
Wooden box/pallet packaging
10 kg
Aerospac, Aviation, Medical
| Quantity: | |
|---|---|

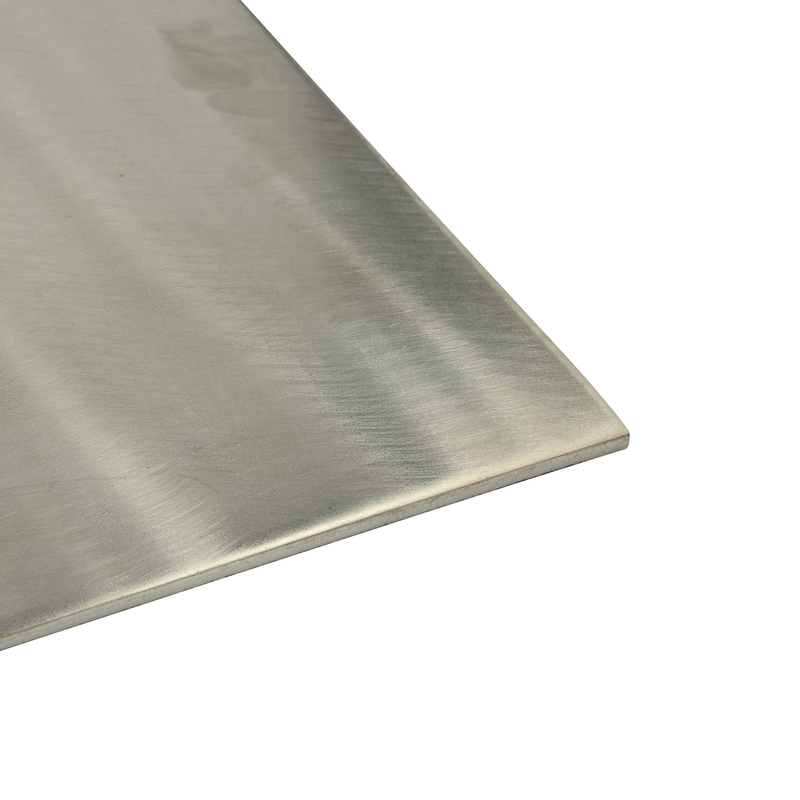

Titanium sheet is a kind of plate made of titanium and titanium alloy, which has a wide range of applications in the aerospace, petrochemical, ship machinery, medical and biological industries because of its excellent properties, such as low density, high strength and corrosion resistance.
High purity titanium plate is high purity, low impurity content of titanium sheet, its purity range of 99.95-99.9995%, is widely used in sputtering targets (a sputtering deposition or thin film deposition technology to manufacture thin films of materials) industry, the semiconductor in its application (≥ 99.995%) the purity of the requirements of higher than the product surface display and solar energy. Due to its excellent mechanical properties, it is used in special military fields and as an alternative upgrade material for hydrogen energy bipolar plates.
High-purity titanium plate production process:
① high-purity titanium sponge → ② electrolytic titanium → ③ high-purity titanium ingot → ④ forging slabs → ⑤ rolling → ⑥ heat treatment → ⑦ surface treatment
| High purity titanium plate testing method: GDMS、LECO | ||||||||||||||||
Chemical composition, ≤, unit[wt%]ppm(1ppm=0.0001%) | ||||||||||||||||
Class | Ti | Fe | Si | Cl | Mn | Mg | Ni | Cr | Sn | Pb | Bi | C | H | N | O | |
3N5 | 99.95% | 200 | 40 | 5 | - | 100 | 50 | 20 | - | - | - | 150 | 50 | 100 | 700 | |
4N | 99.99% | 20 | 10 | 5 | 10 | 1 | 10 | 10 | 5 | 5 | - | 50 | 50 | 50 | 350 | |
4N5 | 99.995% | 15 | 5 | 1 | 5 | 1 | 5 | 5 | 1 | 1 | 0.1 | 30 | 10 | 50 | 300 | |
5N | 99.999% | 5 | 2 | 1 | 1 | 1 | 0.5 | 1 | 1 | 0.1 | 0.1 | 30 | 10 | 30 | 200 | |
Titanium sheet is a kind of plate made of titanium and titanium alloy, which has a wide range of applications in the aerospace, petrochemical, ship machinery, medical and biological industries because of its excellent properties, such as low density, high strength and corrosion resistance.
High purity titanium plate is high purity, low impurity content of titanium sheet, its purity range of 99.95-99.9995%, is widely used in sputtering targets (a sputtering deposition or thin film deposition technology to manufacture thin films of materials) industry, the semiconductor in its application (≥ 99.995%) the purity of the requirements of higher than the product surface display and solar energy. Due to its excellent mechanical properties, it is used in special military fields and as an alternative upgrade material for hydrogen energy bipolar plates.
High-purity titanium plate production process:
① high-purity titanium sponge → ② electrolytic titanium → ③ high-purity titanium ingot → ④ forging slabs → ⑤ rolling → ⑥ heat treatment → ⑦ surface treatment
| High purity titanium plate testing method: GDMS、LECO | ||||||||||||||||
Chemical composition, ≤, unit[wt%]ppm(1ppm=0.0001%) | ||||||||||||||||
Class | Ti | Fe | Si | Cl | Mn | Mg | Ni | Cr | Sn | Pb | Bi | C | H | N | O | |
3N5 | 99.95% | 200 | 40 | 5 | - | 100 | 50 | 20 | - | - | - | 150 | 50 | 100 | 700 | |
4N | 99.99% | 20 | 10 | 5 | 10 | 1 | 10 | 10 | 5 | 5 | - | 50 | 50 | 50 | 350 | |
4N5 | 99.995% | 15 | 5 | 1 | 5 | 1 | 5 | 5 | 1 | 1 | 0.1 | 30 | 10 | 50 | 300 | |
5N | 99.999% | 5 | 2 | 1 | 1 | 1 | 0.5 | 1 | 1 | 0.1 | 0.1 | 30 | 10 | 30 | 200 | |
